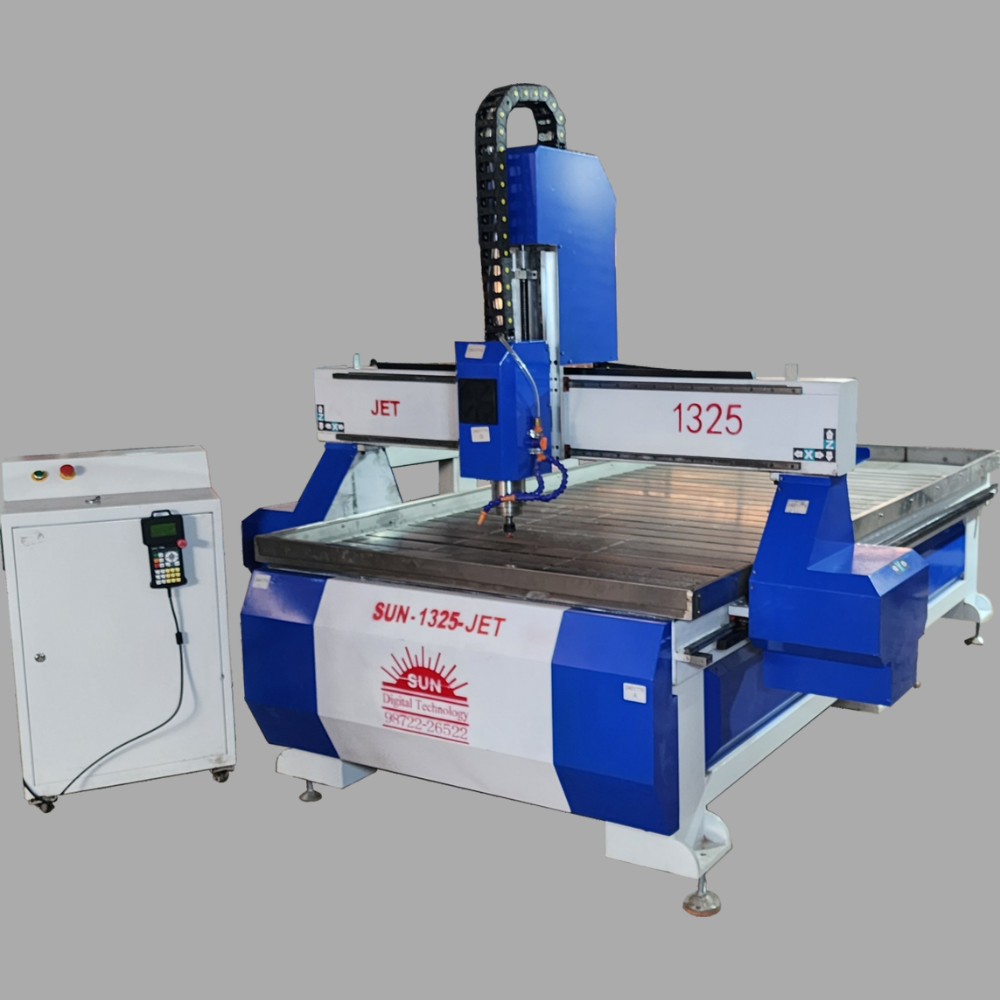

CNC ROUTER MACHINE MODEL: S -1325 JET

CNC ROUTER MACHINE MODEL: S -1325 JET

Original price was: ₹700,000.00.Current price is: ₹650,000.00.

+ Free Shipping

This Machine Working on: Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet,
Korean Cutting, 2D & 3D Carving.Optinal ( 2D & 3D Carving. Marble, Granite, Metal, Aluminium, Copper, Brass)

Category:
Guaranteed Safe Checkout
DescriptionDimension
Working Size :X-1300 x Y-2500mm 8x4 Feet / 8x5feet / 10x5 feet
Machine Power :7 Kw Or 8.5hp
Transmission :Taiwan 25mm Z Ball Screw Drive With Break System-tbi
Table Structure:Cast Steel
Bed Structure :T-slot Aluminium Table With Hard Pvc
Spindle Power :Spindle 6kw Air Cool / 5.5kw Water Cool (HSD Italy) HQD
Spindle Speed :24000 / 18000 rpm/min
Max Air Move Speed :40000mm/min
Max Working Speed :35000mm/min
X/y-Transmission :Taiwan1.25 M Helical Rack Gears For Xy Axis,
Guide Rail:LM Guide Rail 20/mm Hiwin Made In Germany
Drive:Full Servo Drive
Motor:Full Servo Motor With Gear Box
Controller:Rich Auto DSP A11
Machine Accuracy:<0.01 Mm
Inverter:Rituo & Best VDF
Program:G-Code Program
Voltage:Single Phase / 3 Phases 380v / 50hz
Software :Artcam, Catcam, Autocut
Oil Pump:Manual Lubrication System
Accessories:20 Bits, Spanner Full Set Adjustment Feet Screw Full Set Spindle Nut *1pc 2pc,sensor.
